Client #183

General

General

Related Images

Project Number 1

Summary:

Eight trials were conducted for a new non aerosol paint application system. The Enviro Caddie system provided a heavier coating in less time than the Traditional Spray Can system. The quality of the coating for the Enviro Caddie system was questionable due to the appearance of small craters throughout the tile. The Traditional Spray Can system required half the time to dry. This may be due to the fact that the Enviro Caddie System applied more paint to the surface than the Traditional Spray Can system. A follow study could be performed to compare drying time of equal amounts of applied paint. The Enviro Caddie System delivered a wider spray path than the Traditional System did. The Enviro Caddie system provided a larger concentrated area than the Traditional Spray Can system did. The TSC system provided a larger over-spray plume than the EC system did. The Enviro Caddie paint delivered more Acetone than the traditional system (4500 to 2500). Both systems delivered similar amounts of Ethyl Benzene (185 to 175 ) and Toluene and (210 to 225). The Enviro Caddie paint had more than twice the total organic vapor than the traditional system did (1200 to 543).

Test Objective:

To evaluate new paint delivery system with traditional spray cans

Product Use:

applying paint to parts
Trial Number Date Run Purpose Success Rating
0 06/12/2002 To compare new spray delivery system with traditional spray can method. A follow up test, usually based on company input.

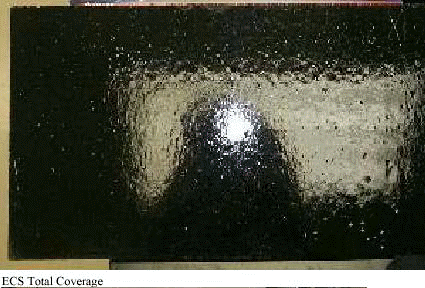

1 06/12/2002 To compare new spray delivery system with traditional spray can method for complete surface coating A follow up test, usually based on company input.
2 06/19/2002 To compare new spray delivery system with traditional spray can method for drying time A follow up test, usually based on company input.

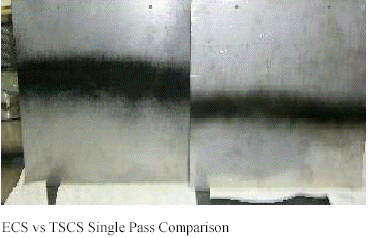

3 06/19/2002 To compare new spray delivery system with traditional spray can method for single pass application. A follow up test, usually based on company input.
4 06/19/2002 To compare new spray delivery system with traditional spray can method for stationary spray pattern. A follow up test, usually based on company input.
5 06/19/2002 To further evaluate new spray delivery system with the traditional delivery system for drying time based on a similar weight application. A follow up test, usually based on company input.
6 07/12/2002 To compare exposure levels for Enviro Caddie and traditional spray paint. A follow up test, usually based on company input.
7 07/24/2002 To evaluate exposure for traditional spray can and Enviro Caddie system A follow up test, usually based on company input.
